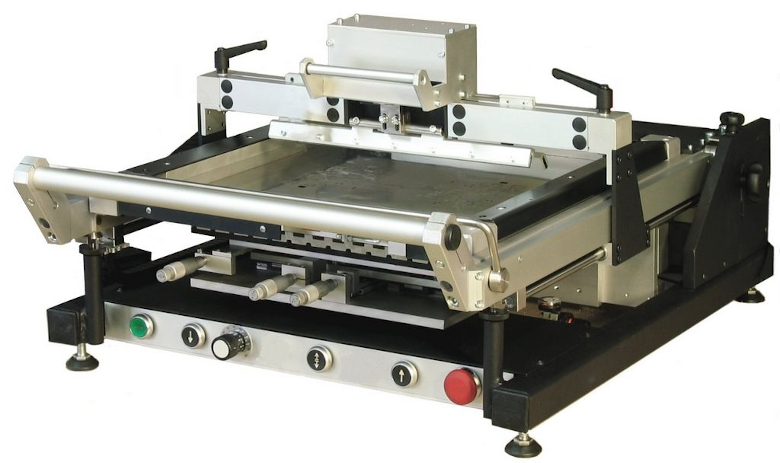

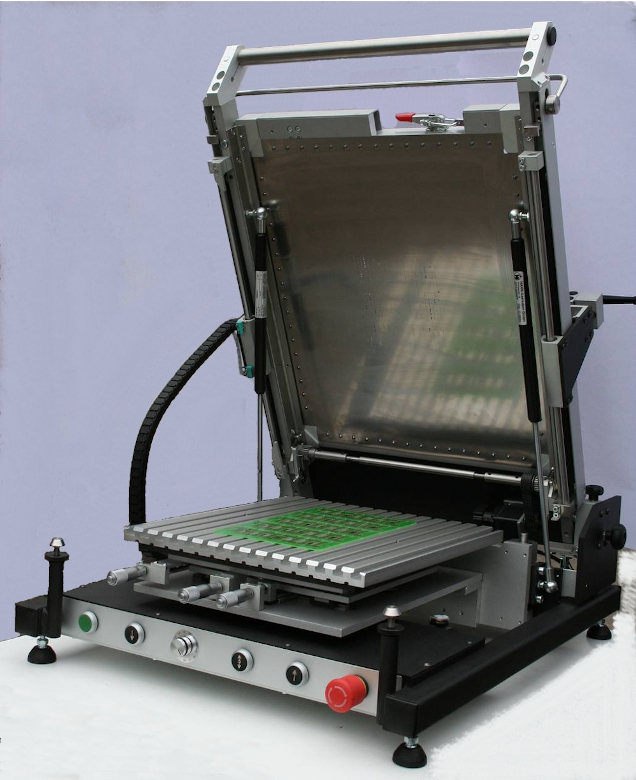

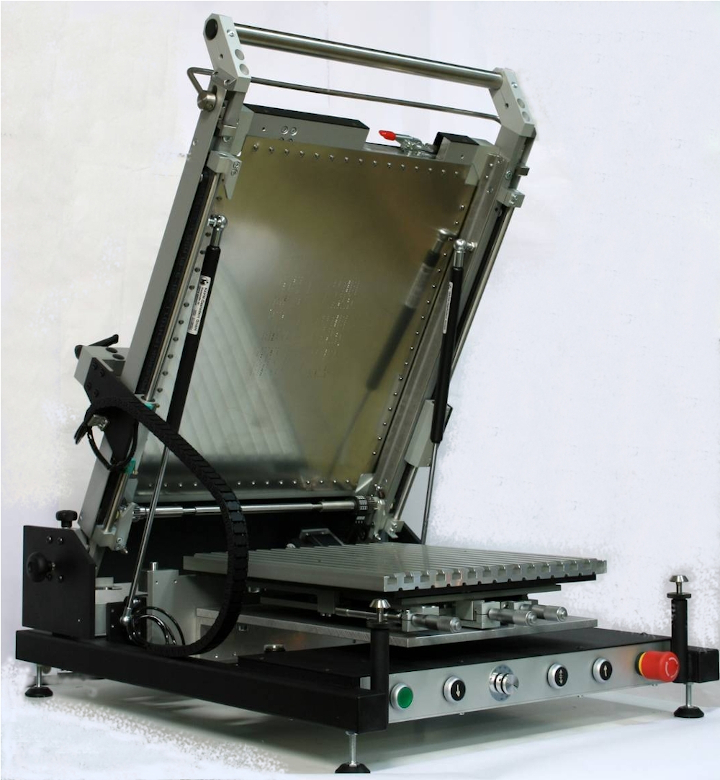

The Stencil Printer S30 is a high-precision manual stencil printer designed for small and medium-volume SMT production. It is also an ideal printer for thermal grease and thermal paste, providing accurate thermal paste printing for electronic assemblies. It features a printing area of up to 350 × 340 mm and supports PCB sizes up to 400 × 375 mm, enabling precise processing of complex boards.
Equipped with an automatic reversible dual squeegee system with universal holders for metal or rubber blades, the S30 ensures uniform paste application with adjustable squeegee inclination (0–60°) and contact pressure (0–200 N). Its programmable electric squeegee drive allows print speeds from 5 to 160 mm/s with fully customizable travel via USB interface, enabling automatic printing of thermal grease.
The printer offers precise X/Y alignment (±12 mm), Theta rotation (±2.7°), and Z-axis off-contact range (0–24 mm), delivering high accuracy even for fine-pitch components down to 0.3 mm. Despite its robust functionality, the S30 remains compact with dimensions of 860 × 670 × 400 mm and a weight of approximately 80 kg.
The S30 stencil printer offers cutting-edge programmable control combined with ergonomic manual operation. Ideal for medium to high-volume SMT production, it features fully programmable electric squeegee drive, automatic dual reversible squeegee, and precise adjustable table lowering. Operators enjoy intuitive control, enhanced accuracy, and seamless integration into modern electronics labs and production lines.
