Stencil printer S40

Auto drive screen and stencil printer with camera system

Advanced SMT Placement Technology

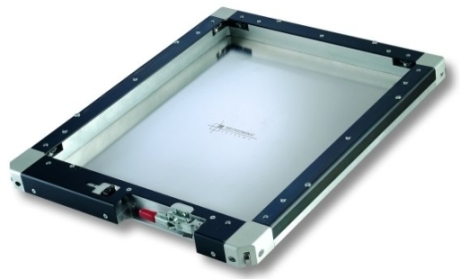

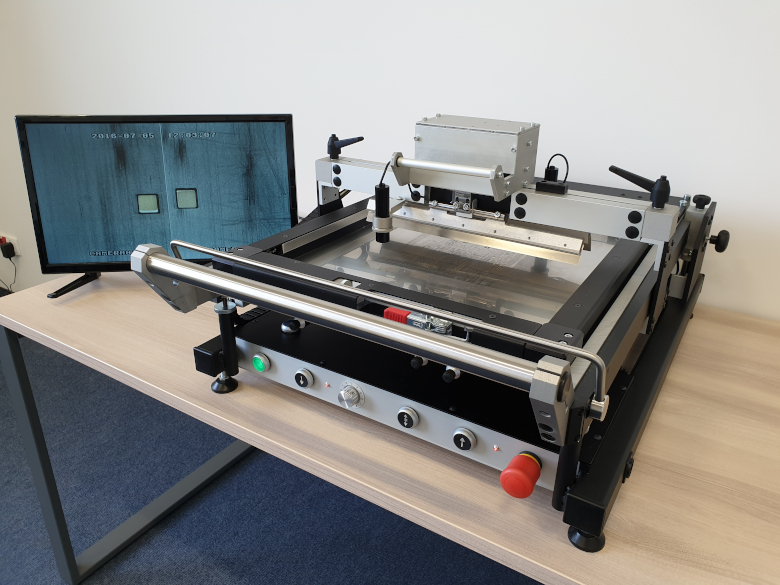

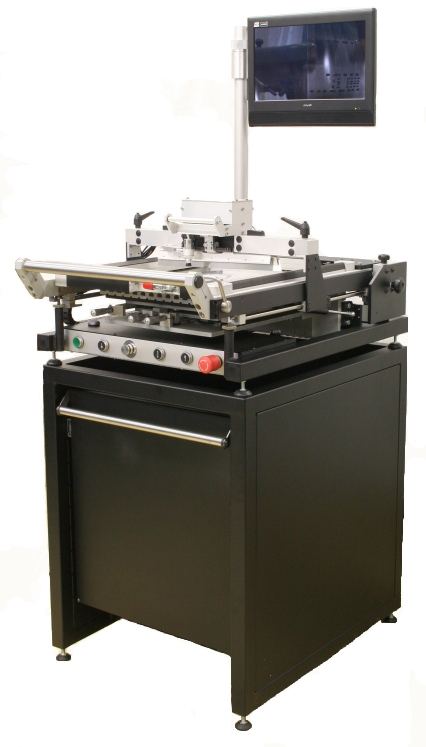

The Stencil Printer S40 is a high-precision thermal paste printing machine designed for medium to large SMT production. It offers a large printing area of up to 350 × 400 mm and supports PCB sizes up to 400 × 375 mm.

With an advanced vision system including multiple CCD cameras and a touchscreen, it ensures accurate alignment. This stencil printer for thermal paste features an automatic dual squeegee that works with metal or rubber blades, with adjustable angle (0–60°) and pressure (0–250 N) for even paste application. The electric squeegee drive is programmable with speeds from 5 to 180 mm/s, allowing precise and automatic printing of thermal grease.

Precise X/Y adjustments (±15 mm), Theta rotation (±3°), and off-contact range (0–30 mm) ensure accuracy for fine-pitch components down to 0.25 mm. It also has automatic table lowering with adjustable speed and pressure. Despite its advanced features, the S40 remains compact, measuring 860 × 650 mm and weighing about 85 kg.

Key Features

  • Advanced integrated vision system with multiple high-resolution CCD cameras and touchscreen monitor
  • Automatic reversible dual squeegee with universal holders for metal or rubber blades
  • Programmable electric squeegee drive with adjustable speed (5–180 mm/s) and customizable travel
  • Supports single and double-sided printing of glue, solder paste, thermal grease, and other substances
  • Automatic table lowering with adjustable speed and contact pressure
  • Compact footprint with dimensions 860 × 650 mm and weight approx. 85 kg
S40 thumbnail S40 thumbnail S40 thumbnail S40 thumbnail S40 thumbnail

High-Precision SMT Printing with Advanced Vision and Automation

The S40 stencil printer combines state-of-the-art vision technology with fully automated printing processes. Designed for medium to large-volume SMT production, it features an advanced integrated vision system, automatic reversible dual squeegee, and programmable electric squeegee drive for superior accuracy and efficiency. Its ergonomic design ensures comfortable operation while maintaining exceptional precision and seamless workflow integration.

Efficient and Precise SMT Printing with Enhanced Automation

The S40 stencil printer delivers reliable and precise SMT printing with its automatic table lowering, adjustable squeegee system, and integrated high-resolution vision cameras. Perfect for demanding production environments, it offers programmable controls and ergonomic features to streamline the printing process and ensure consistent quality for complex PCB assemblies.
