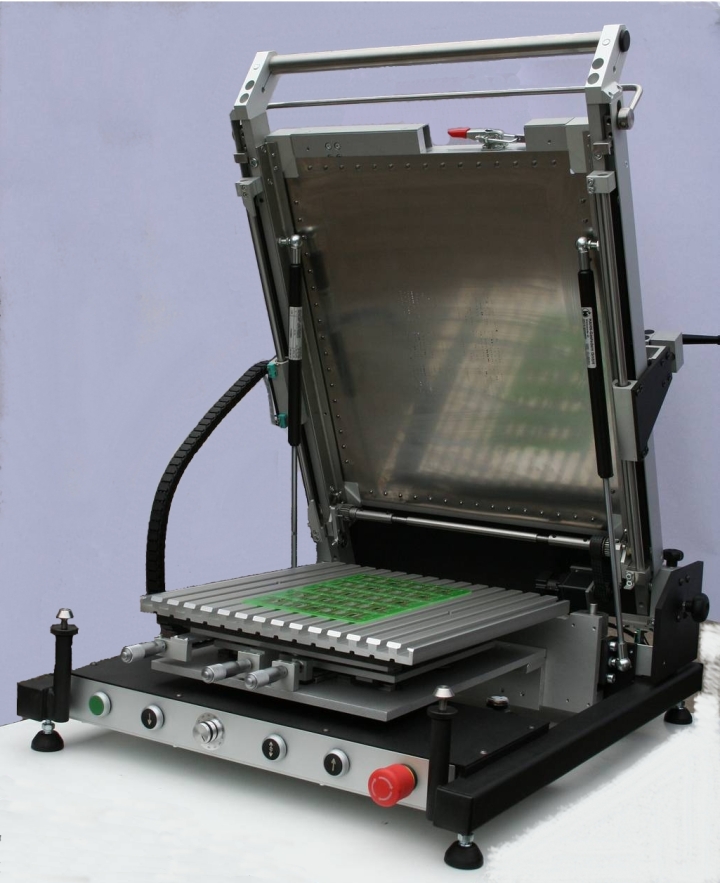

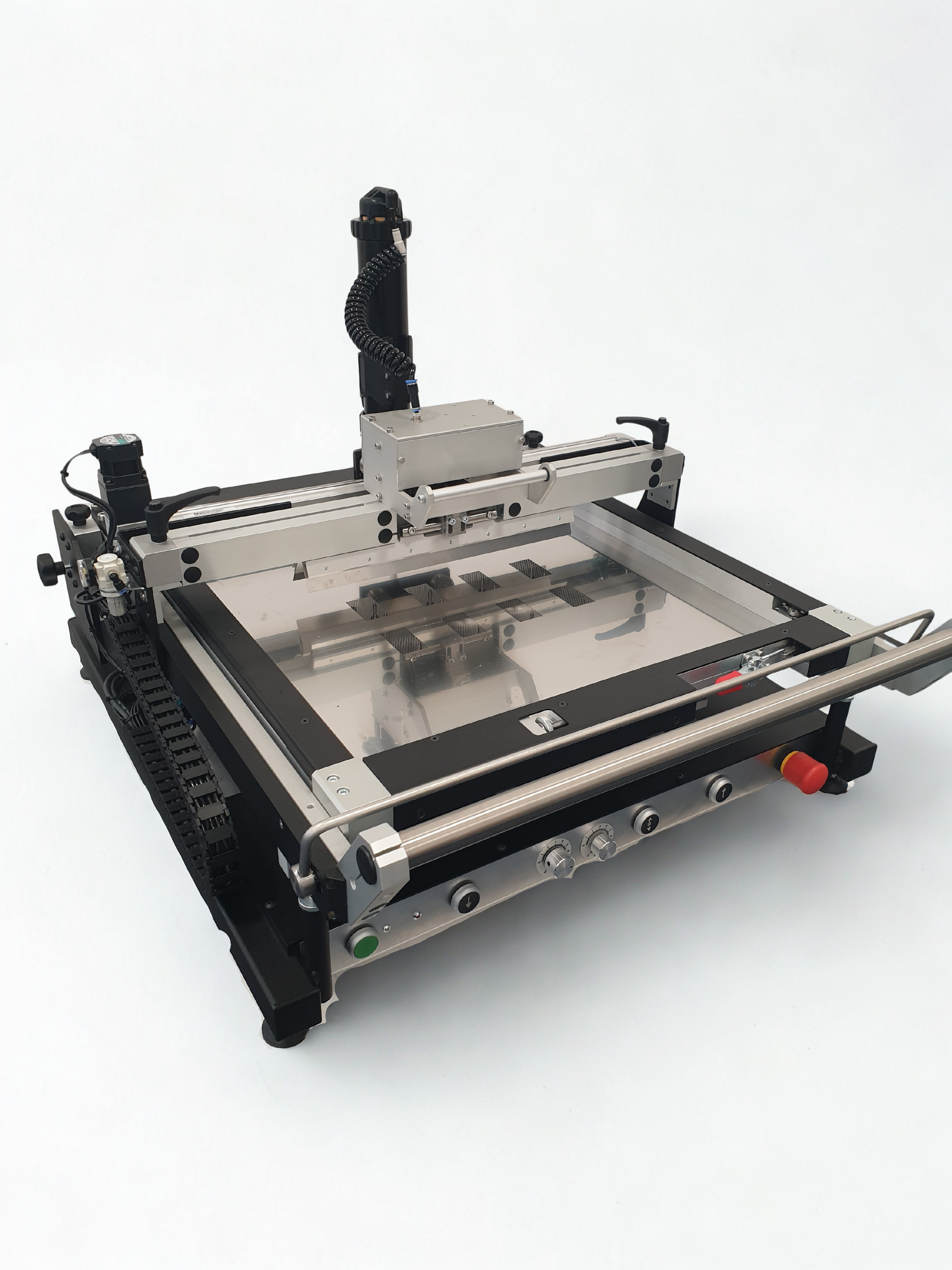

Stencil printer S60

Auto drive screen and stencil printer S60

Precision and Flexibility for High-Volume SMT Production

The S60 stencil printer is a high-precision thermal paste printing machine designed for demanding SMT production environments requiring high precision and throughput. It accommodates large stencil frames and PCB sizes, supporting complex boards with fine-pitch components.

This stencil printer for thermal paste is equipped with an automatic reversible dual squeegee system compatible with metal or rubber blades, offering adjustable squeegee inclination (0–60°) and contact pressure (0–250 N) for optimal printing of thermal grease. The programmable electric squeegee drive allows print speeds from 5 to 180 mm/s, with fully customizable travel parameters via USB for accurate and repeatable paste deposition.

Key Features

  • Automatic reversible dual squeegee with universal holders for metal or rubber blades
  • Programmable electric squeegee drive with adjustable speed (5–180 mm/s) and customizable travel
  • Supports single and double-sided printing of solder paste, glue, thermal grease, and other substances
  • X/Y adjustment: ±15 mm, Theta rotation: ±3°, Table adjustment accuracy: ±0.01 mm
  • Automatic table lowering with adjustable speed and contact pressure
  • Compact footprint: approx. 860 × 750 mm; Weight: approx. 90 kg
S60 thumbnail S60 thumbnail S60 thumbnail S60 thumbnail S60 thumbnail

S60: Advanced SMT Stencil Printing with Maximum Precision

Discover the S60 stencil printer, engineered for high-volume SMT production with exceptional accuracy and flexibility. Featuring an automatic reversible dual squeegee system and programmable electric drive, the S60 delivers consistent paste application on large and complex PCBs. Its precise alignment controls and automatic table lowering streamline production while maintaining ergonomic ease of use. Ideal for demanding electronics manufacturing environments.
